Discussion Starter · #1 ·

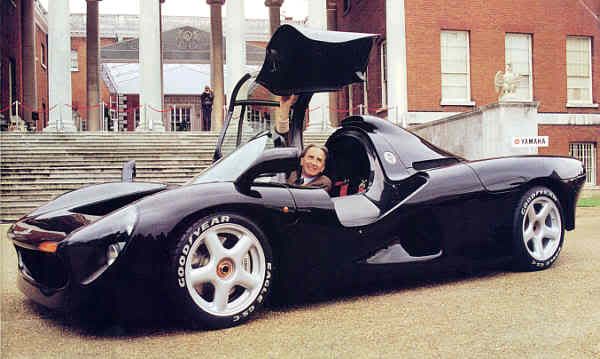

This was built subsequent to the McLaren F1, and you can see some F1 elements in it (driver sits front-and-center like the McLaren), but still, it's really a shame this was never produced. I'm sure someone here would've shoehorned that little 3.5 liter V-12 into a Mk2 by now; I bet it would fit too!








Make sure you watch the last 15 secs. of this video:

http://www.youtube.com/watch?v=KCCxkk6BAYM&NR=1

Some stats:

Engine:Yamaha 3.5 litre V12 (De-tuned version of Formula 1 engine). Approx 400bhp at 10,000 rpm.

Chassis: Carbon Fibre “tub” with engine mounted directly to rear bulkhead (Manufactured by DPS composites)

Body: Aluminium panels hand made using traditional rolling techniques and hammer form tooling.

Front Suspension: Double wishbones from Aero section steel tubing, fabricated uprights, push rods to inboard coil over damper units

Rear Suspension: Double wishbones from Aero section steel tubing, fabricated uprights, push rods to inboard coil over damper units mounted directly on gearbox.

Transmission: FF Developments 6 speed transaxle with limited slip differential and multi-plate AP racing clutch

Brakes: AP Racing 6 piston (Front) and 4 piston (Rear) billet machined calipers with Cast Iron discs.

Wheels: Magnesium Alloy

Tyres: Goodyear Eagle F1

Interior: Single central seat with small “pillion” seat just behind and to one side of the driver. Minimal trim

Door: Single “Gullwing” door

Top Speed: 217.5 mph / 350 kph

Production: 3 Prototypes


·
Registered
Joined
·
304 Posts
Discussion Starter · #2 ·

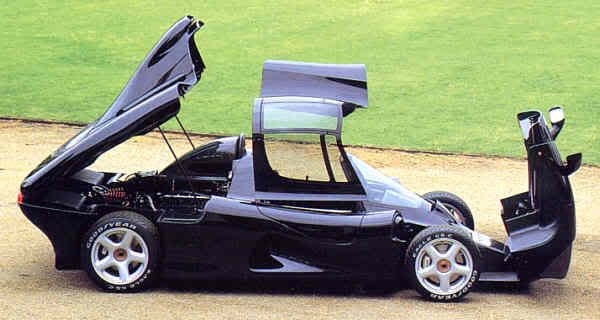

This is either a stripped OX 99-11, or a formula-style car based on the OX 99-11, it's difficult to tell, but either way it's the same 3.5 liter V-12 used in the OX 99. If you look hard enough at the photos in the first post, you can see what appears to be same front section under the raised hood of the car with bodywork. It also looks like the engine mounts directly to the rear bulkhead as per the specs shown above:




Photo of the driver's workstation. Apparently there was a small seat behind the driver, according to the specs shown in post above:
