A few new photos of my ma61

Once again, The Machining wizard that is Dean Pulled out all the stops for me to Modify the pulleys so i didn't have to fork out for a new custom one. Thanks Dude, You ROCK!
Front Aircon pulley removed from the Toyota 5MGE Crank pulley

[IMG13652672_10209158308650213_1091067207_n by neil walker, on Flickr[/IMG]


(Before v - with the aircon pulley)

[IMGSAM_2536 by neil walker, on Flickr[/IMG]

Dean Centre bored to 88 and to a depth of 35mm with a step cleaned up inside on the Toyota Pulley

[/url]13714274_10209158312490309_975814791_n by neil walker, on Flickr[/IMG]

Spacer locates inside the step and bolts through with countersunk bolts to the Toyota pulley.

[/url]13689662_10209158319170476_970166392_n by neil walker, on Flickr[/IMG]

The Jag xjr -6 Supercharger pulley with One pulls removed & Register machined down to 88mm
[IMG13689588_10209158299809992_2019703996_n by neil walker, on Flickr[/IMG]

Then shorten to 25mm long

[/url]13689810_10209158298409957_1227012316_n (1) by neil walker, on Flickr[/IMG]

Jaguar Pulley then slides inside the Toyota Pulley and bolts into the spacer using the original holes

[/url]13735192_10209158319330480_179554516_n by neil walker, on Flickr[/IMG]

Like so >



So now the finished item looks like this. Can't wait to bolt it on and get a belt on there B-)

[/url]13672537_10209158319570486_1398550598_n by neil walker, on Flickr[/IMG]

Progress. Rainer Cliff popped over to make my strange idea's into reality with the door bars. Cheers bro!
Also - massive thanks to Mark and Dean for all their work to get it this far!

13882527_10154796613587580_440125466903887719_n by neil walker, on Flickr

13895082_10154796613747580_7575191011117409712_n by neil walker, on Flickr

Nice bit of clearance between door bars and my hip and arm now
13882231_10154796613592580_3008619651973278482_n by neil walker, on Flickr


The car is a bit of a funny shape, and combined with me having to run the seat rails outboard to get it low enough i didn't have much space between the seat and the cage. I went for this style door bar, and tilted them out to touch the inside skin of the doors

13882527_10154796613232580_6339845751567306372_n by neil walker, on Flickr

13912912_10154796613222580_5776250779541886054_n by neil walker, on Flickr


13932697_10154796613227580_8708266056295235017_n by neil walker, on Flickr
Bottoms of the cage legs got boxed in with 3mm. I made them slightly different before, but this is how Rainer did it, and it's given me more ankle room


Main hoop legs box gussets and floor plates all welded in
13876102_10154796613522580_8121064711227451888_n by neil walker, on Flickr


Shoulder belts will attach to this back tube that mark welded in.
13903202_10154796613577580_5630761585611850663_n by neil walker, on Flickr

Door bars are flat in the middle of the door, so should protect me well against side impacts
(not that we want that of course)

13882527_10154796613587580_440125466903887719_n by neil walker, on Flickr


With the dash plonked back in
13939335_10154796613802580_4270323463942070218_n by neil walker, on Flickr


And a photo to show the crank pulley mounted on.
13895194_10154796613807580_8078098027834405624_n by neil walker, on Flickr

SupraFiend said:

Does the upper section of the header interfere? If its just the lower section (Ypipe back), then take that as an opportunity to rebuild that entire piece. The OBX is decent, except for the fact that the final down pipe is a paltry 2 inchs in diameter, just like the stock exhaust :eekfacepalm:

Click to expand...

It's mainly the back 3 hitting the steering knuckles - call them 4 - 5 -6. Number 3 fouls the knuckle too, just where it crosses under 4 -5-6. Only ones that kinda work would be the first two! In hindsight i maybe should have bought the OBX 7MGE manifold (umm sorry, header ) as that is easier to mod.
And some updates...

I Bought a 4 litre kit of U Pol Raptor Truck bed liner for the underside o the car. Fully impressed with it!
That shits unscratchable it seems, and goes on lovely with a shultz gun on a compressor. Tigersealed the seams beforehand so hopefully it should last

[/url]SAM_2705 by neil walker, on Flickr[/IMG]

Used about 3 Litres of raptor on the underneath, so had a bit left to do the insides in places most likely to wear. The footwells have a nice waterproof and grippy surface now. The rest of the inside is going silver.

[IMGSAM_2707 by neil walker, on Flickr[/IMG]

I also did the boot floor with what i had left. Quite glad i did as it really tidies it up a lot

[/url]SAM_2710 by neil walker, on Flickr[/IMG]

[/url]SAM_2711 by neil walker, on Flickr[/IMG]


I have started to plumb up the new fuel system. The whole car is using 8mm ptfe lined braided stainless hose & AN6 fittings. All apart from the fuel cell and swirl pot - which are AN8, but thought this a bit overkill and meant buying lots of different fittings and hose, so keep it simple stupid i thought. The Lift pump from the Fuel cell is a Facet Red top, and the main pump is a Walbro GSL392, Which flows 255 LPH

[IMGSAM_2721 by neil walker, on Flickr[/IMG]

Placement of the Walbro Fuel pump and Bosch fuel filter is causing a bit of head scratching at the moment. I quite like this position as it's close to the swirl pot, and well out of the way of damage, but will have a play about before i drill any holes!

[/url]SAM_2717 by neil walker, on Flickr[/IMG]

I bought some AN6 through Bulkhead fittings for joining up the fuel lines from the underside of the car. I didn't want to run the lines through with grommets around the hose as think thats a bit sketchy. This sits under the diff carrier subframe so well out the way and close to the swirl pot
[/url]SAM_2720 by neil walker, on Flickr[/IMG]

Screwed on some 90 deg fittings, but looking at it, Straight ones are better
[/url]SAM_2719 by neil walker, on Flickr[/IMG]

Once i figure out where the main fuel pump and filter is going, i'll do the rest of the lines.
[/url]SAM_2716 by neil walker, on Flickr[/IMG]

I also made this dry break style filler a while ago. for the jgtc tyte look yo. hehehe:zzzzz:
[IMGSAM_2699 by neil walker, on Flickr[/IMG]

[IMGSAM_2697 by neil walker, on Flickr[/IMG]

[/url]SAM_2696 by neil walker, on Flickr[/IMG]

Filler neck on the jaz fuel cell is quite tall so might chop a few cm off it to lower the angle
[/url]SAM_2698 by neil walker, on Flickr[/IMG]

Did some work to the dashboard in preparation for Car trimming wonderwoman Nicky to sprinkle some skill over it. Ordered a length of Black proper job Alcantara cloth to cover up the skanky old blue, so before i used some of the the dry carbon honeycomb dashboard that Amy's better half gave me, These Holes are for the AEM Wideband and Boost gauge, but have also ordered Oil pressure and temp gauges too.
[/url]SAM_2722 by neil walker, on Flickr[/IMG]

Where the heater vents for the side windows used to live, i cleaned up the corner that fouled the cage and boxed it in with some dry carbon fibre. A lot tidier.
[IMGSAM_2725 by neil walker, on Flickr[/IMG]

A wider shot so you can see the honeycomb and the tidied up corner
[/url]SAM_2723 by neil walker, on Flickr[/IMG]

The underside is nearly there, Just the diff and prop to fit really, but wanted to do the fuel lines first before putting them back in.

[/url]SAM_2730 by neil walker, on Flickr[/IMG]

On a bit of a tight budget this month for progressing with the supra, but really needed to paint the interior so the loom and everything else can go back in to get it running. Didn't have access to a spray gun and any decent paint so had to resort to silver alloy wheel paint in rattle cans. 8 for £28 got the job done and racecar innit!

[/url]SAM_2747 by neil walker, on Flickr[/IMG]

Doesn't look half bad from a distance, and blends it all together a bit better.
[IMGSAM_2748 by neil walker, on Flickr[/IMG]

[IMGSAM_2749 by neil walker, on Flickr[/IMG]

The door bar tops will need a bit of protecting from scuffing i think, so might use either a bit of raptor or some vinyl 3M i had for the roof.

Up to the final skim on making it look like a non sunroof car. Used a combination of fibreglass bridging gunk and filler mixed up to give it some strength, then built it up in thinnish layers and sanding down with a long block



The boot floor is masked up where i sprayed the black raptor, as are the front foot wells
[/url]SAM_2746 by neil walker, on Flickr[/IMG]


Will let that dry and get to work putting the loom ect back in the car tomorrow

CLToy said:

Amazing build! Will be going back through this again as well. I want to make a differential cooler as well and would like to see how you mounted the lines, rad, and pump. Is there a need to do something similar for the transmission?

Click to expand...

I still need to rig mine up to the diff tbh, M18 Banjo's if i remember correctly!
The Nissan 240sx (we had the 200sx in jolly old england) diff cooler and pump set up has been used on a whole heap of other cars, and if you did suffer from baking hot transmissions you could certainly use it for cooling both.

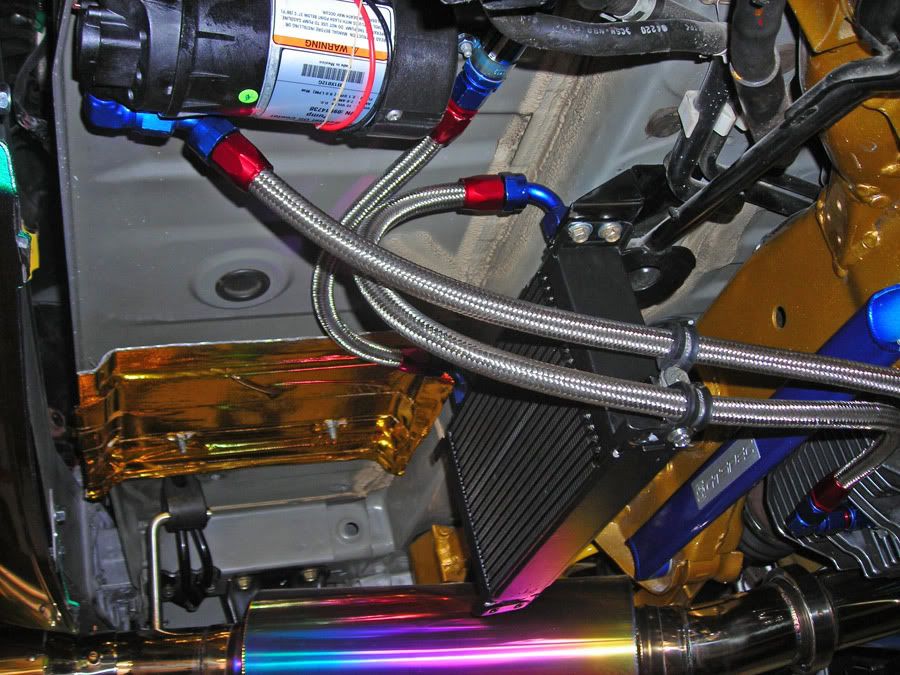

Here are some photos i found from a R35 GTR with a similar set up.


[/URL][/IMG]



Right, Onto the cars present state... (Gone back to Flickr As a host now so hopefully the pics shouldn't disappear anymore!)


Been off the supra for a few months after we had to give up the old workshop, so while the suns briefly out i decided to fit the Greddy (trust) manifold i ordered.
Fits like a dream around the Steering column. (OBX ones don't fit on RHD cars as it turns out - expensive faux pas!:SM130 (1)
[/url]SAM_2816 by neil walker, on Flickr[/IMG]

The Airflow meter will be replaced with a Map sensor eventually, when i invest in a Megasquirt DIYPNP 52 standalone ECU
[/url]SAM_2807 by neil walker, on Flickr[/IMG]

It looks a bit more together than it did, and tried to put some paint on it before it went into winter hibernation

SAM_2809 by neil walker, on Flickr

Door opened to show the door bars - Door cards are out & are being replaced with Carbon Fiber ones. Black Alcantara for the soft part on top.
SAM_2811 by neil walker, on Flickr

Seats, dash and wiring back in, just needs the dash covered in either alcantara or flocked before the screen can go back in

SAM_2812 by neil walker, on Flickr

Center console switches. The Electric window switches had to be moved as they are mounted on the door cars and fouled the cages doorbars

Had some Dry weave carbon from an old BTCC touring car Dashboard my friend rescued from a junkyard years and years ago.
Was too good to not do anything with! Sides will be trimmed with carbon too, Using the offcuts from the door cards.
[/url]SAM_2815 by neil walker, on Flickr[/IMG]


The welded up sunroof didn't turn out too shabby in the end. A few low spots but the body shop will have to address that anyhow when it goes in for a repaint hopefully later on this summer

SAM_2814 by neil walker, on Flickr

Been waiting for a Samco Profuel filler pipe for sodding ages,so can't yet connect up the fuel filler, but ordered up the correct banjo bolts and fittings for the fuel rail now. m14 x 1.5 as it turns out
[/url]SAM_2813 by neil walker, on Flickr[/IMG]

I have been through a few old computers since i started this thread, so won't have all the old photos, but will try and edit as many previous posts as i can to get them up and viewable again for ya'll

SupraFiend said:

Looking good!

Another Trust header, would love to try one out one day. Its the only M motor header I havn't owned.

Click to expand...

Yeah, i'm well happy with it. Worked out not too bad cost wise too. i bought it on a site called "Buyee" and got a 50% off shipping deal so was £650 in total for the manifold and downpipe inc shipping and taxes ect. Was £414 for the manifold and downpipe together though, so i've done my bit for the economy!

Considering buying one of these Ultra racing braces from a AE86 just for finding out if they will fit on a celica Supra. I could always just send it back if it's too far out, but would probably be able to make it work if it doesn't wind out enough.

http://www.ebay.co.uk/itm/like/182365766764

Got lots of other stuff on my ebay watch list at the moment, but gone a bit crazy with the carbon trinkets this month so better calm it down haha
